Polishing Robot(Type:UM)

drawing

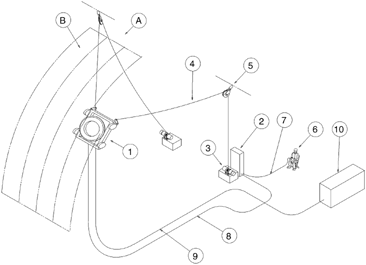

drawing1
  • 1 Main Unit
  • 2 Control Panel
  • 3 Auto-tension Winches
  • 4 Wire Ropes
  • 5 Sheaves
  • 6 Operator
  • 7 Remote Control Cable
  • 8 Power Cable
  • 9 Suction Hose
  • 10 Vacuum Unit
  • A Wall
  • B Treated Surface
drawing2
  • 1 Surface
  • 2 Rotating Suction Disk
  • 3 Polishing Cloth Tips
  • 4 Drive Motors for Suction Disk
  • 5 Suction Hose Connector
  • 6 Drive Wheels
